60W M7 MOPA LASER ENGRAVER for DEEP Engraving and Color Engraving work

Video

Reviews	4.3 /5 (10 ratings)
Inquiries	119
Model	BGF-MOPA
Category	Laser Engraving Machine
Brand	BOGONG
Price Range	$6200 - $9800
Supply Ability	10 Sets / Month
Port From	Qingdao, Shanghai, Tianjin
Payment Terms	L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union

Send a request

MOPA 60w M7 Laser Engraver can do marking, deep engraving on all metal parts, it can also do color laser engraving on stainless steel, and also you can use if for cutting soft metal like gold silver brass.etc. you can call it mopa laser engraving machine, mopa fiber laser machine, Mopa Laser Marking machne. 60w laser engraver, MOPA laser marking system, except deep engraving and cutting work, Mopa laser also can do color engraving on surface of Stainless steel, if you got one Bogong MOPA laser machine, it will fast cutting your laser work, and it will expand your possibilities when marking on plastic, like polymer material, which can get white color easier.

Mini type 60W MOPA Laser machine with small size and light weight, the engraving an cutting capacity of 60W mopa laser engraver won a good reputation, With MOPA Laser 60W M7, the pulse width can be set from 2-500ns, frequency range is 1-4000khz. that the main reason why Mopa LASER engraver can get more color on stainless steel, but normal fiber laser machine can not do it. take Raycus 50W Laser source for example, the pulse width is fixed, you can not change this parameters, and frequency range between 50-100khz, if you are not requirement color engraving on stainless steel, 50W Raycus can meet most of your laser work, because price are big different between 50W fiber and 60W MOPA

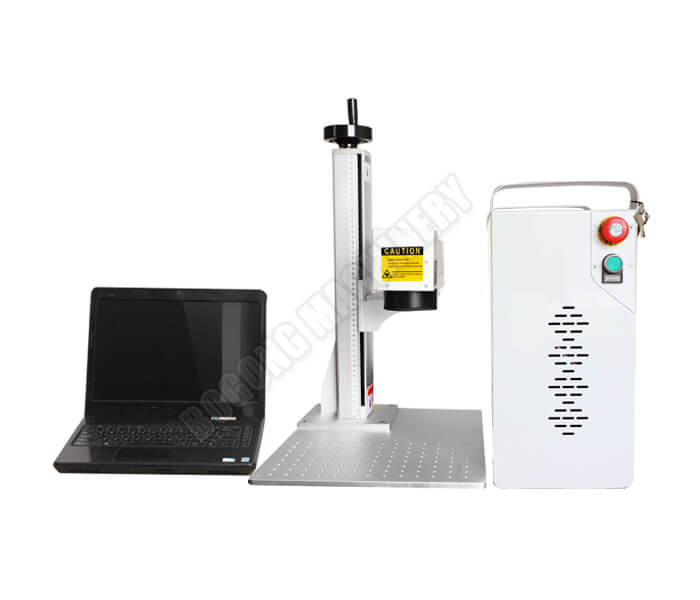

Mini type laser engraving machine as below:

MOPA LASER

Mopa Laser engraving machine also do some black on anodized aluminium. with short pulses and lower pulse engergy, the material heated less so reduced burn, sometime can get better result on plastic material, you can say it controlled melting on plastic material.

MOPA Laser also with feature of maintenance-free, long lifetime, no need water cooling, easy operation.

You can see MOPA M6 JPT laser source work on Stainless steel and polymer material as below:

mopa m7 laser engraving machine.jpg

Also video link of 60W MOPA M7 Laser machine

HOW to choose the right MOPA LASER MACHINE？

If you only need color engraving on ss, no need deep engraving, just choose 20W or 30W MOPA laser machine.

If you need color engraving on ss, and also need some other deep engraving work on metal, or cutting work on gold siver for jewelry, then you can choose and 60W MOPA laser. because big laser power, high laser engery do deep engraving and cutting work. you can check 60W mopa cutting 1.5mm metal sheet from below link:

*What's the different between fiber laser and mopa laser? or you can say what's the different between Raycus 50W and JPT MOPA 60w

Fiber laser is Q-Switched structure, it have fixed pulse width, and also because small range of frequency, so it can not not get color, and easy burn some plastic material.

MOPA 60W m7 can rudule laser residence time on material, also with big energy and big single pulse energy, so it can get much better engraving and cutting work than 50W machine, if you have enough budget, you can thinking choose one 60W laser engraver and cutter.

*What color can a MOPA M7 laser do?

Even MOPA laser machine can do color engraving, but it not like inkjet machine which can get color fast and bright, MOPA laser color can do several color, but all color engraving, MOPA can get blue, green, purple etc.

*If MOPA can do color engraving on plastic?

No, MOPA laser engraver can not do colorful engraving on plastic, it can get white color on most of polymer material and nylon material, its better have a test if most of your work is plastic.

*How to operate laser machine?

Let take our mini machine for example, you can see line connection and text engraving as below link

*How does color laser engraving work?

Change different parameters then get different color, we will provide an templates for MOPA LASER COLOR Setting.

*How can we get MOPA fiber laser price?

Leave your messages here, and write all your laser work requirement, then you can get our fast reply.

BOGONG MACHINERY also have other laser machine like 3D laser engraving machine, fiber laser cutting machine, CO2 LASER cutting machine,

CO2 LASER Marking machine, UV Laser marking machine. contact with BOGONG MACHINERY to get more detail.
